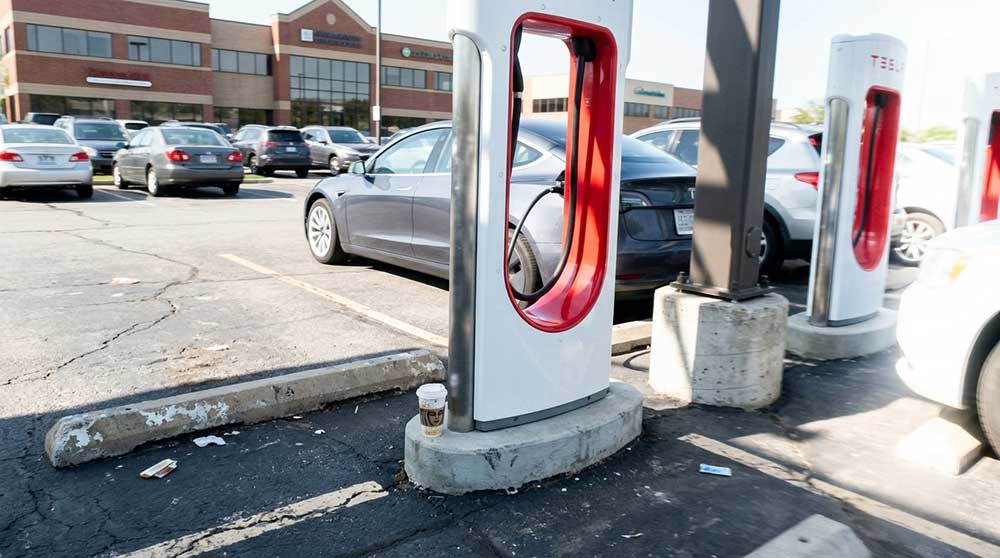

Network Pro: How Do Tesla Superchargers Function?

You think Tesla Superchargers are just “plug in and wait”—but what’s actually happening inside that cabinet would make most electricians nervous. We’re talking 250 to 615 kilowatts of high-voltage DC conversion, silicon-carbide electronics, and real-time battery negotiation happening in milliseconds. It’s less like filling a gas tank and more like two computers arguing about electricity at highway speed. Understanding the hardware behind this changes every charging decision you’ll make.

How Tesla Superchargers Deliver DC Power Directly to Your Battery

When you plug into a Tesla Supercharger, the station handles the heavy lifting before electricity even touches your car — specifically, it converts incoming AC grid power into high-voltage DC inside the charging cabinet, so the energy arrives at your battery already in the format it can actually use. That station-side high voltage conversion is the fundamental reason Superchargers operate at up to 250 kW while your home charger tops out somewhere considerably less impressive.

Once the DC leaves the cabinet, it travels through liquid-cooled cables (cable cooling exists because pushing that much current generates serious heat) and connects directly to your battery pack, bypassing your onboard charger entirely. That component only matters during AC charging. The V4 cabinet architecture uses a tray-based modular design with roughly 16 internal power conversion modules, allowing a single cabinet to support up to 1,200 kW in Semi deployments or 500 kW for passenger vehicle sites.

The station and your vehicle communicate continuously, negotiating voltage and current in real time. This adaptive throttling adjusts power delivery based on battery temperature and state of charge, protecting your pack while keeping the session fast. The global network currently spans over 35,000 Superchargers across more than 4,500 stations, making long-distance travel viable without significant range anxiety.

V2, V3, and V4 Superchargers: What the Speed Differences Actually Mean

Not all Superchargers are built equal, and the generational gap between V2, V3, and V4 hardware is where that reality becomes impossible to ignore. Each generation reflects a measurable leap in capability—though “faster” depends heavily on conditions you can’t always control.

Here’s what the numbers actually mean:

1. V2 peaks around 150 kW but uses shared power between paired stalls, so a neighbor charging nearby can slow you down.
2. V3 delivers up to 250 kW per stall with liquid-cooled cables, largely eliminating that shared power penalty.
3. V4 raises the ceiling to 325–350 kW, with hardware theoretically capable of 615 kW—but stall limits reported in-app often still show 250 kW.
4. Peak variability means your battery’s temperature and state of charge matter more than the station’s generation label.

Hardware sets the ceiling. Your battery determines the floor. Regional infrastructure also plays a role, as V3 Superchargers operate at up to 1,000V DC in both North America and Europe, though connector standards differ between the two markets. Meanwhile, V4 cabinets are built to a 1.2 MW capacity, using 800V architecture and silicon carbide power electronics to support the next generation of high-demand charging.

Superchargers make long-distance Tesla travel easy, but they also quietly shape how much you rely on public charging versus having a predictable setup at home. That’s why many owners eventually install a Tesla Wall Connector, since it turns overnight parking into a consistent charging routine that removes the need to think about Supercharger availability for everyday driving in the first place.

Why Superchargers Bypass Your Onboard Charger and Why That Matters

Your car’s onboard charger exists for one specific job: converting AC power from a home outlet or destination charger into the DC power your battery actually stores.

Superchargers skip that step entirely by supplying high-voltage DC directly to the battery pack, cutting out the onboard charger as a middleman and eliminating its power ceiling as a bottleneck. V3 Superchargers deliver up to 250 kW of charging power, enabling the kind of rapid energy transfer that makes long-distance travel practical without lengthy stops.

That’s why a Supercharger can add up to 200 miles in roughly 15 minutes, while even the best Level 2 AC setup is stuck topping out at around 30 to 45 miles per hour of charge. If you’re unable to access charging network data online, Cloudflare site protection may be blocking your request and triggering an error page.

What Onboard Chargers Do

Every Tesla has an onboard charger built into the vehicle — and no, it’s not the black box you plug into the wall. Grasping onboard functions is foundational to the charging basics every Tesla owner should know.

Here’s what it actually handles:

1. Converts AC power from your wall outlet or Wall Connector into DC energy the battery can store
2. Caps your AC charging speed based on its rated capacity (7.4 kW, 11 kW, or 16.5 kW depending on your model)
3. Operates silently inside the vehicle — not inside the charger itself
4. Limits overnight charging performance if your supply exceeds what the onboard charger can process

It’s the gatekeeper for AC power. DC charging, however, completely sidesteps it. Regional charging standards also influence how that AC power arrives in the first place — EU models support Type 2 and CCS2 connectors with three-phase AC, while North American vehicles use NACS with single-phase AC delivery. With a three-phase supply, the Gen 3 onboard charger can deliver up to 22 kW of output, making it one of the more capable AC charging units found in any production electric vehicle.

DC Power Bypasses Them

When a Tesla Supercharger connects to your car, the onboard charger sits completely idle — and that’s entirely by design. DC bypassing works because Superchargers handle the AC-to-DC conversion externally, supplying power directly into your battery pack through the high-voltage system. Your onboard charger simply isn’t needed.

Before any electricity flows, connector negotiation happens — the charger and vehicle exchange data about battery state, temperature limits, and maximum acceptable input. That handshake has real safety implications; pins stay dead until authorization completes, preventing dangerous uncontrolled power supply.

Once charging begins, thermal management continuously monitors pack temperature and adjusts output accordingly. Some Superchargers push up to 250 kW — power your onboard charger could never process. Skipping that internal bottleneck entirely is precisely why Supercharging is genuinely fast. This same principle of external power management reflects how Tesla’s broader vehicle architecture separates high-voltage handling from internal systems, much like how sensor fusion combines inputs from multiple sources rather than relying on a single internal process.

Speed Benefits Explained

Bypassing the onboard charger isn’t just an engineering shortcut — it’s the entire reason Supercharging is genuinely fast. Direct DC delivery means power flows straight into the pack, unfiltered and unrestricted by your car’s internal hardware limits.

Here’s what that speed actually looks like in practice:

1. 5%–60% SOC delivers the session’s fastest rates — this window is your route optimization sweet spot.
2. V3 Superchargers (250 kW) add roughly 75 miles in five minutes under favorable conditions.
3. Charge taper begins around 80% — staying below that threshold respects both battery longevity and charging etiquette at busy stations.
4. Cold batteries charge slower — preconditioning your pack before arrival recovers significant speed.

Short stops, low state of charge, warm battery. That’s the formula. Tesla’s proprietary Supercharger network was purpose-built to address range anxiety across continents, making it a core pillar of the ownership experience rather than an afterthought.

NCA vs. LFP Batteries: The Charge Limit That Fits Each Chemistry

Your Tesla’s battery chemistry isn’t just a spec-sheet detail—it actively dictates how aggressively you should charge it every single day. NCA (nickel-cobalt-aluminum) packs experience measurable stress at high states of charge, so Tesla recommends capping routine sessions at 80–90% and reserving 100% for long trips, since nickel-based cells degrade faster when repeatedly pushed to full voltage.

LFP (lithium iron phosphate) packs, by contrast, tolerate 100% charges far better and actually need them—roughly once per week—because LFP’s famously flat voltage curve makes precise state-of-charge estimation difficult, and a full charge helps the battery management system recalibrate its readings. On long trips, stopping at 80% rather than charging to full is also a recommended practice for battery longevity, regardless of chemistry.

Chemistry Shapes Charge Limits

Not all Tesla batteries play by the same rules, and that distinction matters the moment you set your charge limit. Your battery’s chemistry directly dictates your charge psychology—it’s not preference, it’s electrochemistry.

Here’s how chemistry shapes your ceiling:

1. LFP packs tolerate 100% regularly and need it for battery calibration (BMS accuracy depends on hitting full voltage).
2. NCA packs perform best with daily limits around 80–90%, protecting cathode stability.
3. LFP voltage plateaus flatly across most of its range, making top-end charging essential for accurate state-of-charge readings.
4. NCA’s higher energy density (~350 Wh/kg vs. LFP’s ~200 Wh/kg) delivers range without needing daily full charges.

Most owners, regardless of chemistry, set daily charge limits to 70–80% capacity, reserving full charges only for longer trips to protect long-term battery health.

Know your pack, set your limit accordingly.

NCA Needs Partial Charging

Charge an NCA pack to 100% every night and you’re not being thorough—you’re accelerating cathode degradation one high-voltage cycle at a time. NCA chemistry responds poorly to prolonged voltage stress near the top of its range, where calendar aging noticeably increases above roughly 55% displayed SOC.

The practical fix is straightforward: keep your daily charge target between 70% and 80%, reserving full charges for trips where you’ll immediately burn through that extra range. Sitting at 90% overnight isn’t catastrophic occasionally, but it’s not a parking strategy—it’s a slow erosion plan.

Partial charging reduces the time your cells spend under raised voltage, directly limiting capacity loss over years. Charge less, sit lower, drive sooner after hitting a high ceiling. Just as charging ergonomics improvements like optimized wall connectors and wireless pads support smarter daily usability across all Tesla models, adopting disciplined charge limits is an equally practical layer of long-term battery stewardship.

LFP Tolerates Full Charge

Most LFP owners can breathe easier at the charging screen, because lithium iron phosphate chemistry handles full charges without the cathode-stress penalties that make NCA owners anxious. The iron-phosphate bond is structurally stable at high voltage, so hitting 100% doesn’t trigger the same degradation cascade.

Here’s what that means practically:

1. Battery calibration requires a weekly full charge to keep your BMS accurate
2. Range estimates drift without periodic 100% top-offs
3. Cycle life stays higher than NCA even with frequent full charging
4. Prolonged storage above 30°C at 100% still accelerates wear

Your weekly full charge isn’t recklessness—it’s maintenance. Set it, let it complete, then drop back to 80–90% for daily parking. Tesla’s heat pump cabin heating system, introduced on the Model Y, improves thermal efficiency by up to 300% compared to resistance heating, which helps preserve battery capacity in cold conditions where degradation risks are already elevated.

Preconditioning and Departure Scheduling Before a Supercharger Stop

Consistently arriving at a Supercharger with a battery that’s already warmed up isn’t luck — it’s the result of using Tesla’s preconditioning and Scheduled Departure features correctly. In cold weather, a thermally unprepared battery charges slower and delivers less range. Tesla’s fix: steer directly to a Supercharger so the system automatically begins warming the pack en route.

For best results, plug in beforehand so the car pulls grid power instead of draining your battery to warm itself. Tesla recommends initiating climate preparation 30–45 minutes before departure in cold conditions. Scheduled Departure coordinates everything, finishing the warm-up precisely when you need the car — no last-minute scrambling required.

Idle Fees, Phantom Drain, and the Hidden Costs of Staying Plugged In

Staying plugged in after your Tesla finishes charging isn’t just inconsiderate — it’s expensive. Tesla’s idle penalties kick in after a five-minute grace period once charging completes, but only when the station hits 50% occupancy or higher.

Leaving your Tesla plugged in after charging isn’t just rude — idle fees start accumulating within five minutes.

Here’s what the numbers actually look like:

1. 50% station capacity: ~$0.50/minute in idle fees
2. 100% station capacity: ~$1.00/minute (fees double automatically)
3. One hour of inaction: roughly $30–$60 in idle penalties alone
4. Phantom losses while parked: real battery depletion from background systems, worsened by temperature extremes

Congestion fees operate similarly, targeting drivers who remain connected at or above 80% charge — Tesla’s standard Supercharger default.

That final 80–100% stretch already charges slowly; combine that with per-minute penalties on a packed holiday weekend, and you’re genuinely paying for the privilege of sitting still. Move the car, save the money.

Supercharger Habits That Preserve Range and Reduce Long-Term Degradation

Charge your Tesla the way you’d treat a high-performance lithium-ion cell that you’d actually like to still trust in five years — because that’s exactly what you’re dealing with.

Good battery etiquette starts with the 20%–80% rule: keep your daily state of charge inside that band, and you’ll minimize the electrochemical stress that quietly eats capacity over hundreds of cycles. Charging to 100% belongs in the trip-planning category, not the Tuesday-morning routine.

When you do hit a Supercharger, treat it as a strategic tool rather than a habit — that DC fast charging generates real heat, and heat accelerates degradation. Proper charger etiquette also means using routing to trigger Tesla’s battery preconditioning, which brings cells to peak temperature before the session starts.

For storage longer than a few days, park around 50%. Both extremes — 0% and 100% — are harder on the pack than most owners realize.

Even with Superchargers covering long-distance travel, Tesla ownership still comes down to the everyday reality of where you plug in. That’s where the Tesla Mobile Connector becomes the quiet backup most owners end up relying on, simply because it turns almost any standard outlet into a usable charging option and removes the stress of needing a Supercharger to keep your day moving.

Frequently Asked Questions

Can Non-Tesla Electric Vehicles Use Tesla Supercharger Stations Today?

The door’s wide open — yes, you can use Tesla Superchargers today with proper EV connectors. You’ll need payment access through the Tesla app and a compatible V3 or V4 stall.

How Does Cold Weather Specifically Affect Supercharger Output and Session Speed?

Cold weather slows your Supercharger session speed because your battery can’t accept high power when it’s cold. You’ll experience reduced range and need battery heating via preconditioning to restore faster charging performance.

Are Tesla Superchargers Safe to Use During Heavy Rain or Flooding?

Rain? You’re fine. Flooding? You’re not. Tesla Superchargers support safe operation in heavy rain, but you must follow flood precautions—unplug, move to higher ground, and never charge near submerged electrical components.

How Do I Find the Nearest Supercharger Station From My Tesla?

You’ll find the nearest Supercharger using your touchscreen’s built-in wayfinding tips and in-car routing — it pinpoints stations, estimates arrival charge, and guides you there automatically. The Tesla app’s map view works great too.

Does Frequent Supercharging Void Any Part of Tesla’s Battery Warranty?

Like a slow burn, frequent Supercharging won’t torch your warranty — it’s not listed under warranty exceptions. It may affect battery longevity over time, but Tesla doesn’t automatically void your coverage for it.
